Intelligent Coal Dry sorter-Пекинская компания "Холистик Технолоджи"

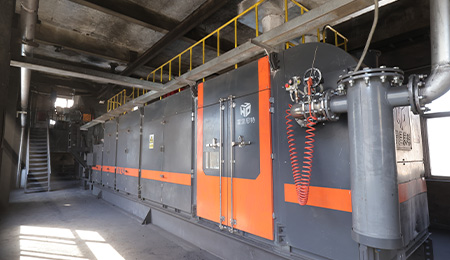

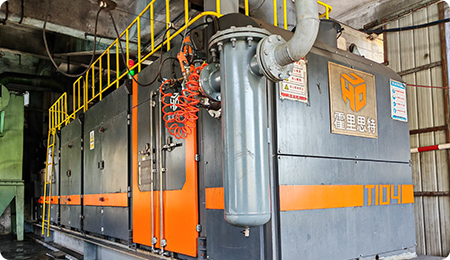

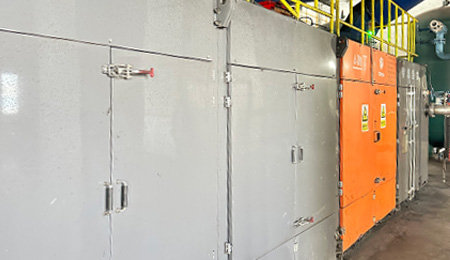

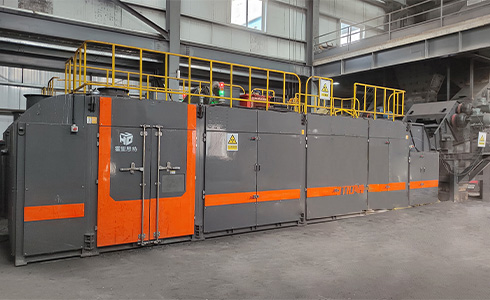

The T104 Intelligent Coal Dry Separator is based on X-ray transmission technology and integrates other spectral technologies for multi-dimensional detection of mineral structures and material compositions. Adopting advanced AI algorithms, it enables real-time identification and precise classification according to customer requirements. Combined with customized air-jet or mechanical pushing modes, it can separate clean coal from gangue or perform three-product separation of raw coal.

T104

 Играй

Параметры

Оборудование

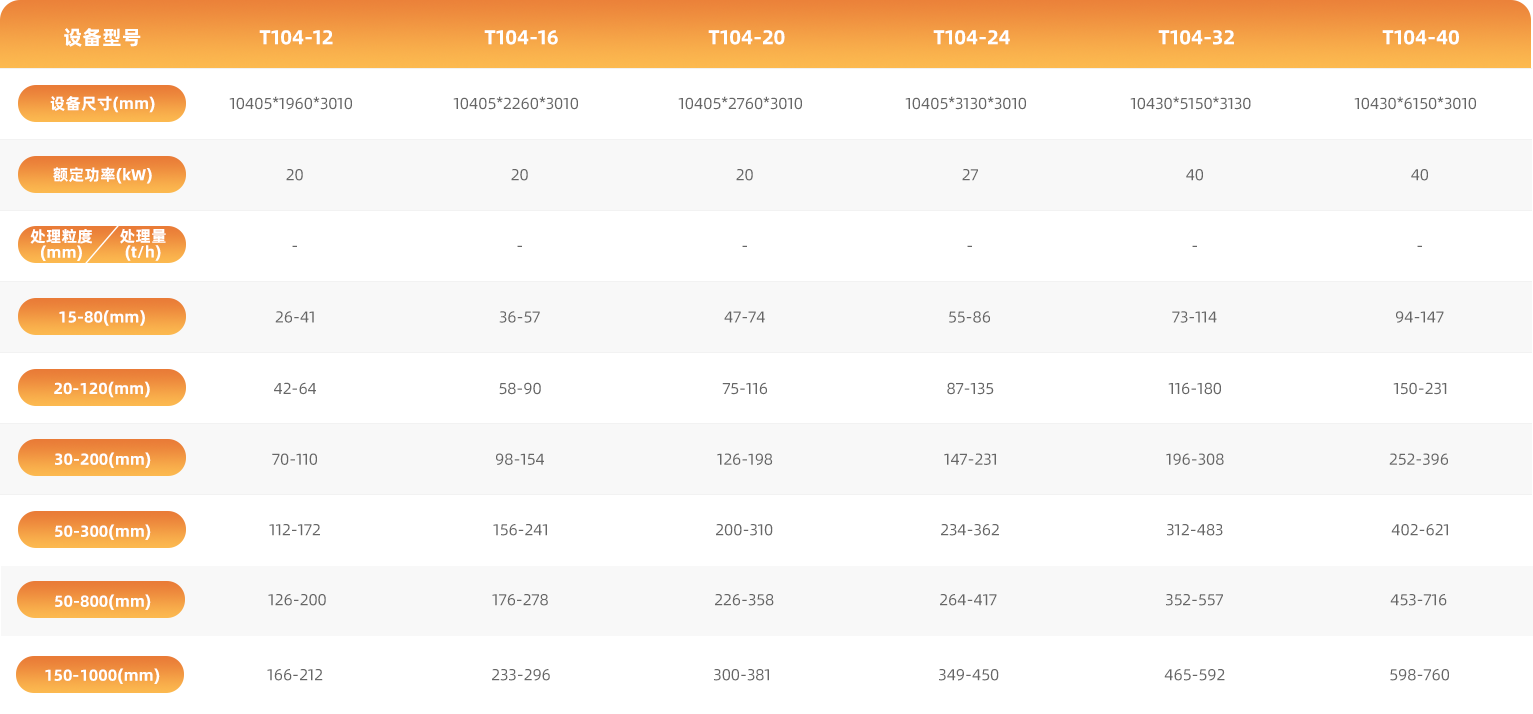

Параметры

Processing Speed
2.5-4m/s
Belt Width
1.2/1.6/2.0/2.4/3.2/4.0m
Particle Size Range
8-1000mm
Processing Capacity
≈30-800t/h
Spectral Solution
X-ray / Visible Light etc
Separation Solution
2-product Separation / 3-product Separation
Radiation
＜0.5mSv/year

Преимущества

Leading the industry in separation accuracy and single-machine processing capacity

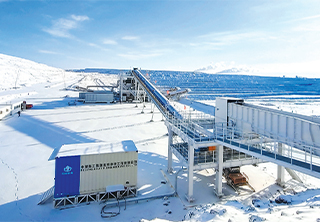

Available in multiple configurations for mobile, low-temperature
and high-altitude applications
This machine can perform three-product separation to meet diverse product requirements
Multispectral fusion identification enables efficient separation
of complex ores
