Self-developed fully automatic mobile intelligent online sorting system

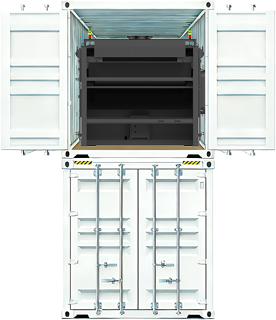

The 114 Mobile Sorting System is a containerized, movable version of the equipment. Built on core technologies including X-ray detectors, AI material identification algorithms, and high-speed injection systems, it features high efficiency, precision and safety. In addition, thanks to its unique integrated and modular design, it offers distinct advantages such as low infrastructure cost, small footprint, immediate production upon installation, and fast loading, unloading and transportation. It is suitable for scenarios with multiple and scattered mining faces and lack of sorting workshops.

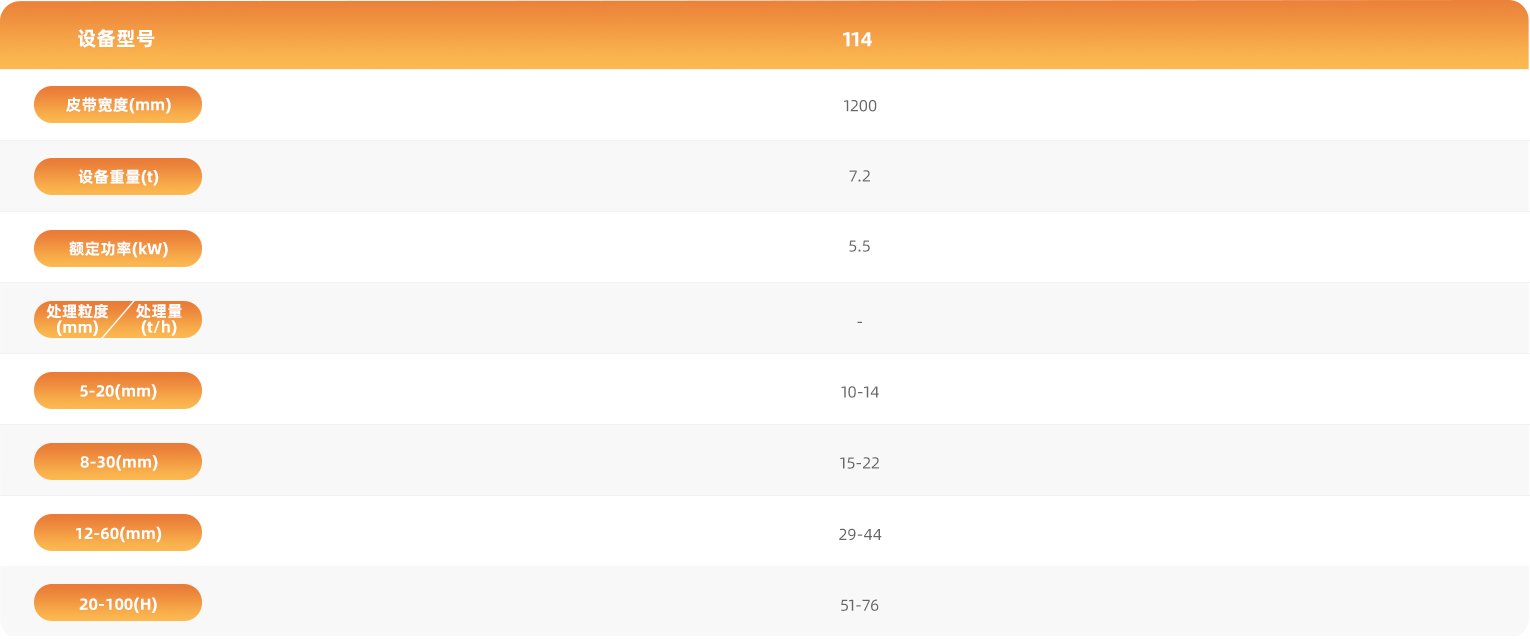

Processing Speed
2.5-4m/s
Belt Width
1.2m
Particle Size Range
5-100mm
Processing Capacity
≈10-80t/h
Spectral Solution
X-ray
Separation Solution
2-product Separation
Radiation
<0.5mSv/year
No auxiliary workshop required, zero infrastructure cost
Simple and rapid installation and disassembly, fast commissioning
Convenient transportation, flexible and maneuverable, capable of rapid site relocation
Small footprint, supports open-air operation
